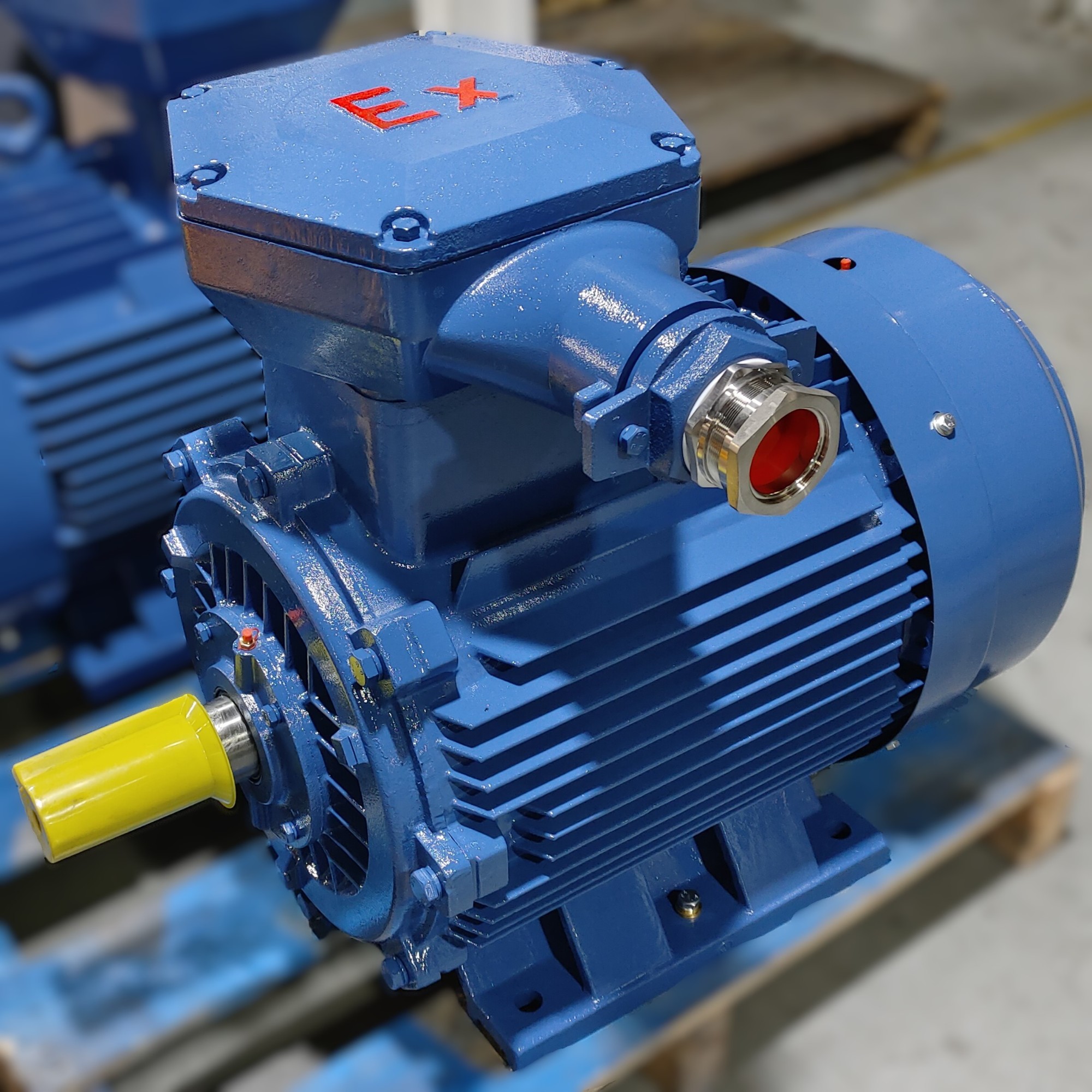

YBX5 series explosion-proof three phase electric motor

Brief introduction:

YBX5 series high efficiency explosion-proof three-phase asynchronous motors, explosion-proof performance in accordance with GB/T3836.1-2021 "Explosive

atmospheres Part 1: General requirements for equipment" and GB/T3836.2-2021 "Explosive atmospheres Part 2: Equipment protected by explosion-proof enclosure

"d", made into explosion-proof type. It is suitable for the place where the explosive mixture formed by combustible gas or vapor and air containing certain ingredients,

or the place in zone 22 where non-conductive dust rarely or only briefly appears in the factory, as a general driving power. Mainly used in petroleum, chemical and other

industries, but also in textiles, metallurgy, city gas, transportation, grain and oil processing, paper, pharmaceuticals and other industries are widely used.

The efficiency of the motor is in accordance with GB 18613-2020 "Energy Efficiency Limiting Value and Energy Efficiency Class of Electric Motors", which is IE5 of

IEC60034-30-1.

The significant features of the motor are high efficiency, energy saving, wide adaptability, and the advantages of large temperature rise margin, long life, low

vibration, low noise and high reliability.

The motor can be equipped with auxiliary equipment such as winding temperature sensor, bearing temperature sensor, temperature transmitter, heater or encoder

according to the user's needs.
