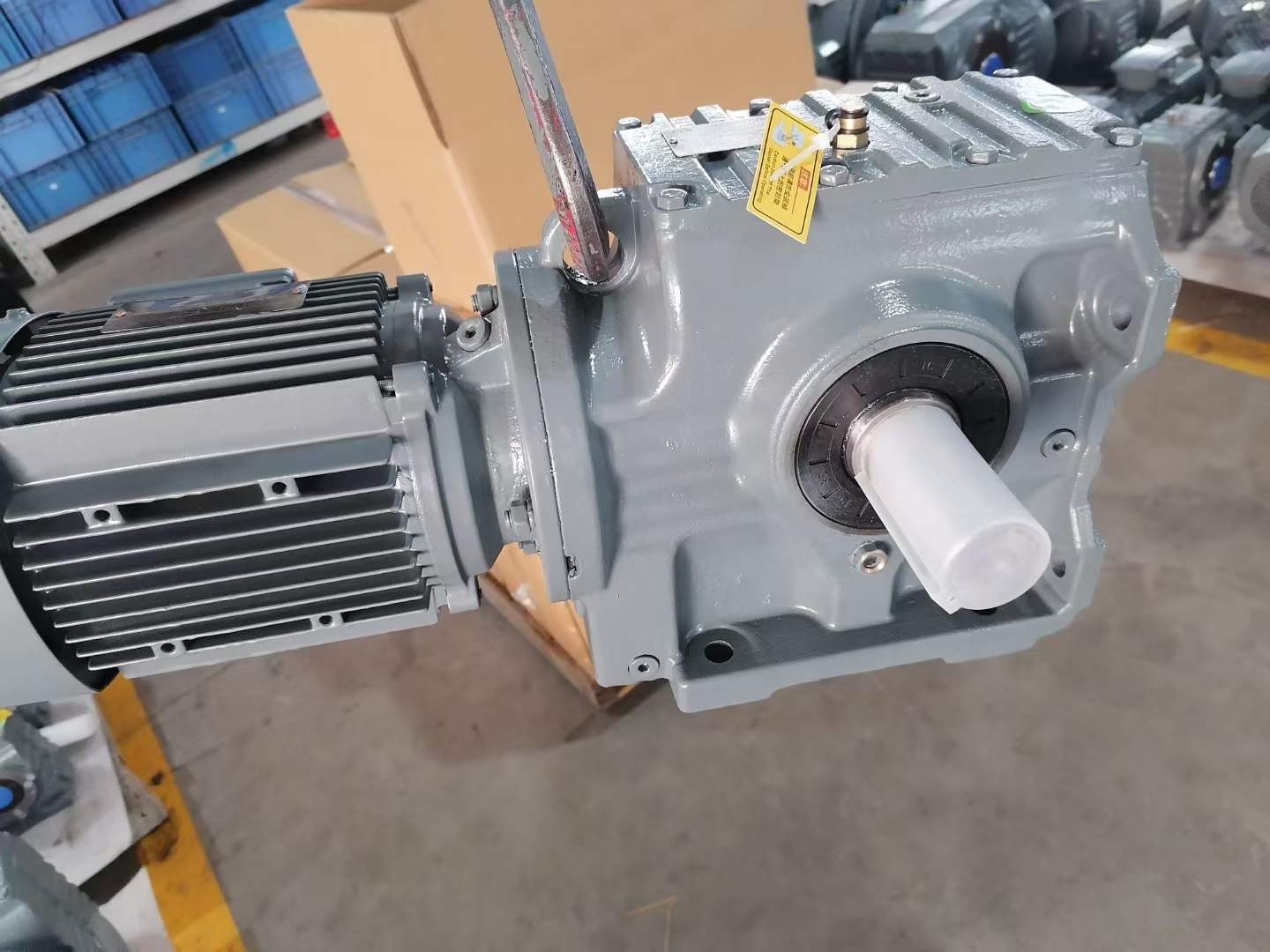

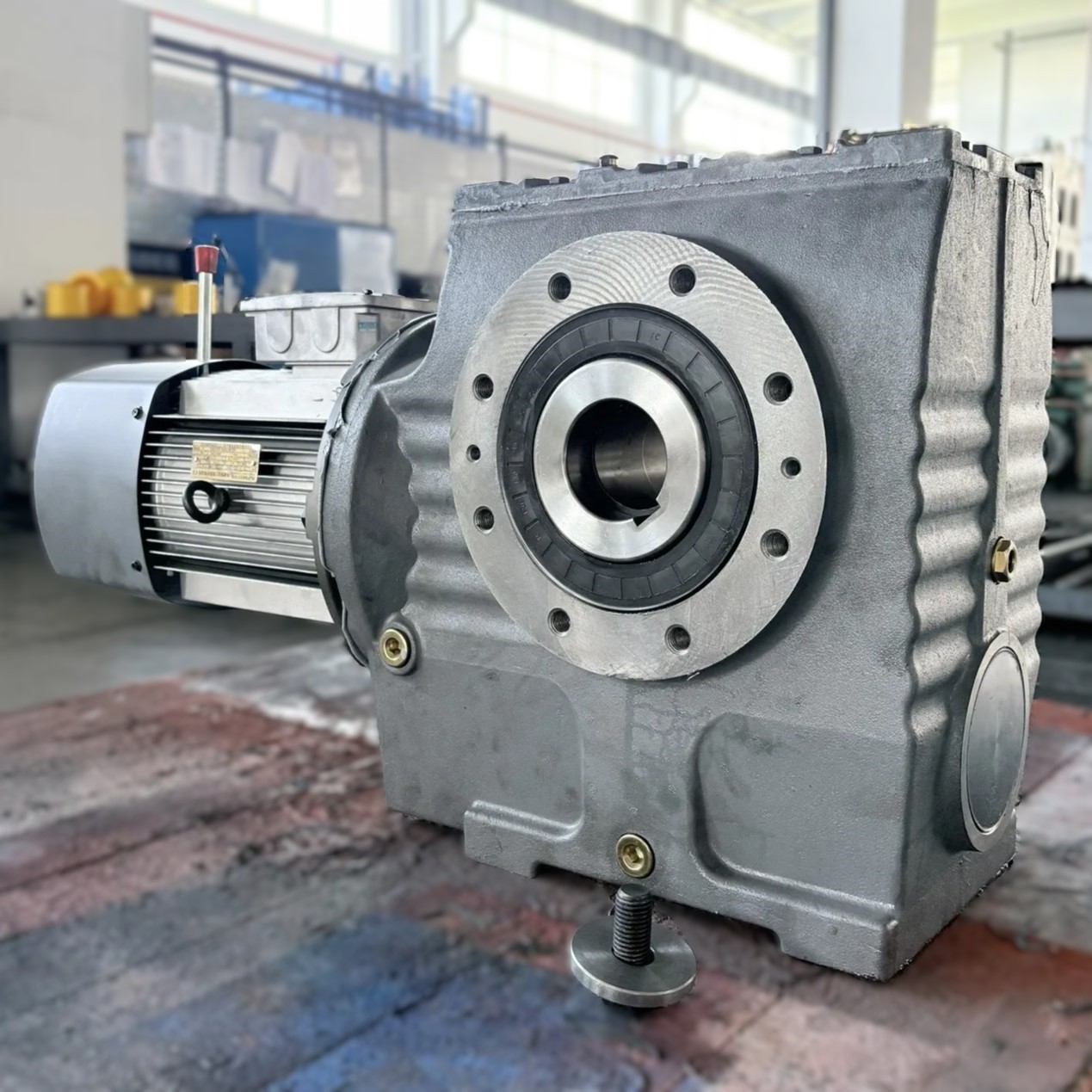

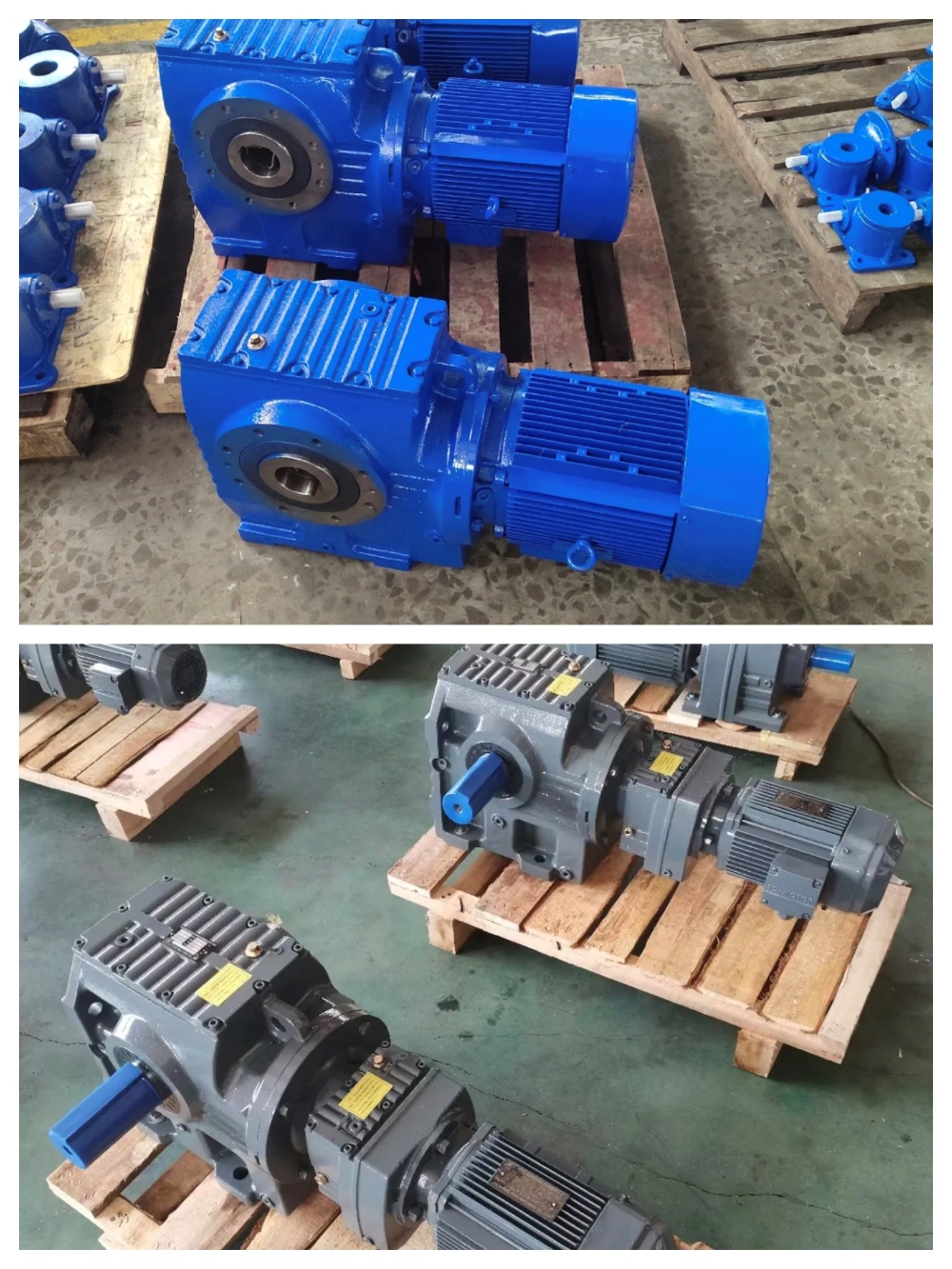

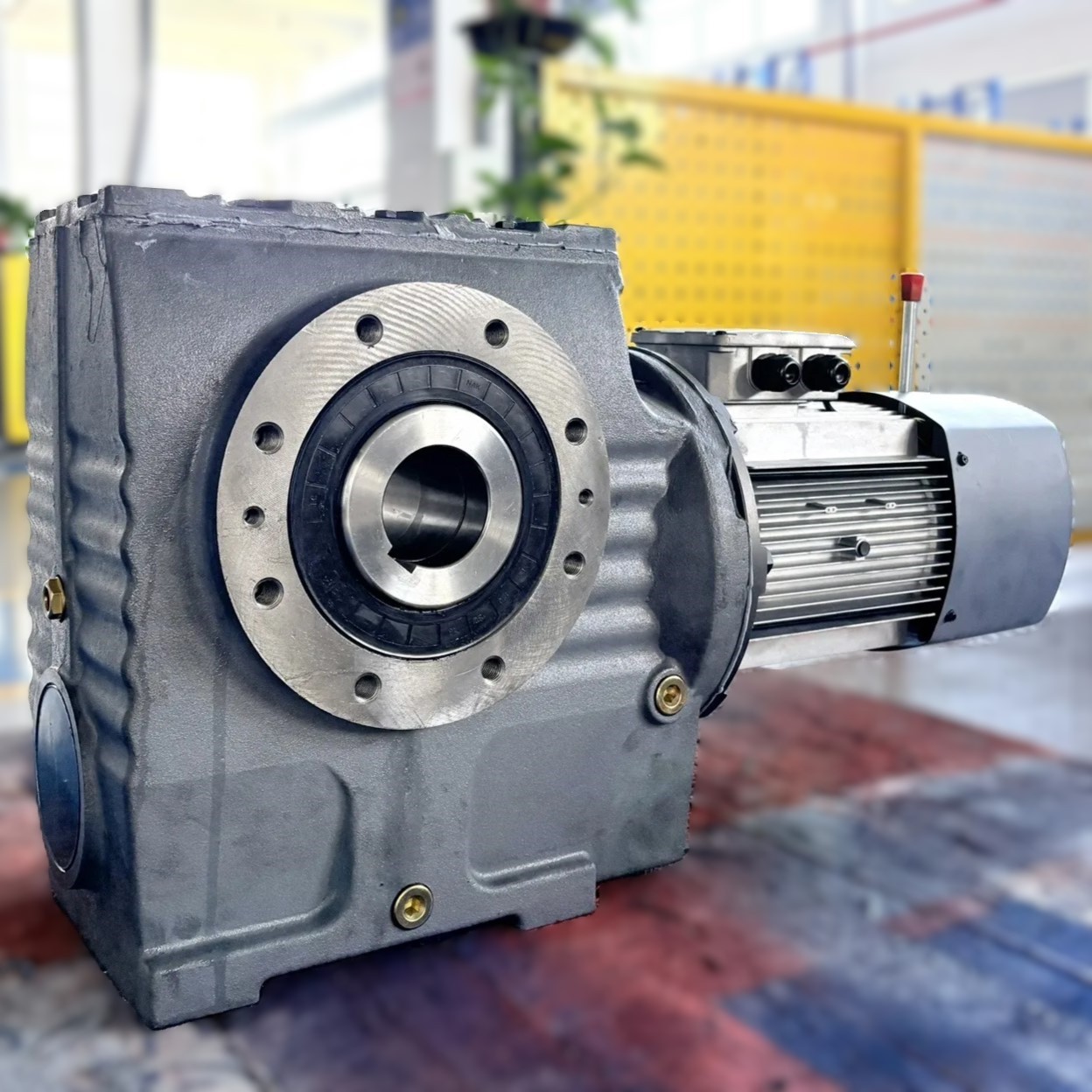

S series helical-worm gear reducer combines helical gear and worm gear double transmission, helical gear section provides high efficiency power transmission, worm gear section realises large transmission ratio and self-locking function. The compact design of the case makes it suitable for vertical installation or narrow space area.
Rated Power:
0.18~22 KW
Torque:
43-4200 NM
Ratio:
9.96~244.74
Housing Material:
Cast iron
Gears:
Helical-worm gears
| Basic Information | |
| Product Name | S series helical worm gear reducer |
| Model | S37; S47; S57; S67; S77; S87; S97 |
| Type | S Series; SA Series; SF Series; SAF Series |
| Installation Method | Foot-mounted; Flange-mounted; Shaft-mounted; Torque arm mounted |
| Input Method | Motor input; Shaft input; AM (IEC) flange input |
| Output Method | Solid shaft output; hollow shaft output |
| Parameters Information | |
| Rated Power | 0.18~22 KW |
| Torque | 43-4200 NM |
| Ratio | 9.96~244.74 |
| Efficiency: | Up to 96% |
| Other Information | |
| Housing Material | Cast iron |
| Gears | Helical-worm gears |
| Lubrication | Oil-bath and Splash Lubrication |
| Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 |
| Structure | S SA SF SAF SAT SAZ | ||||||
| Input power rate (KW) | 0.18- 0.75 | 0.18- 1.5 | 0.18- 3 | 0.25- 5.5 | 0.55- 7.5 | 0.75- 15 | 1.5- 22 |
| Ratio | 10.27- 165.71 | 11.46- 244.74 | 10.78- 196.21 | 11.55- 227.20 | 9.96- 241.09 | 11.83- 223.26 | 12.75- 230.48 |
| Max torque (N.m) | 90 | 170 | 300 | 520 | 1270 | 2280 | 4000 |
| Weight (kg) | 7 | 10 | 14 | 26 | 50 | 100 | 170 |
