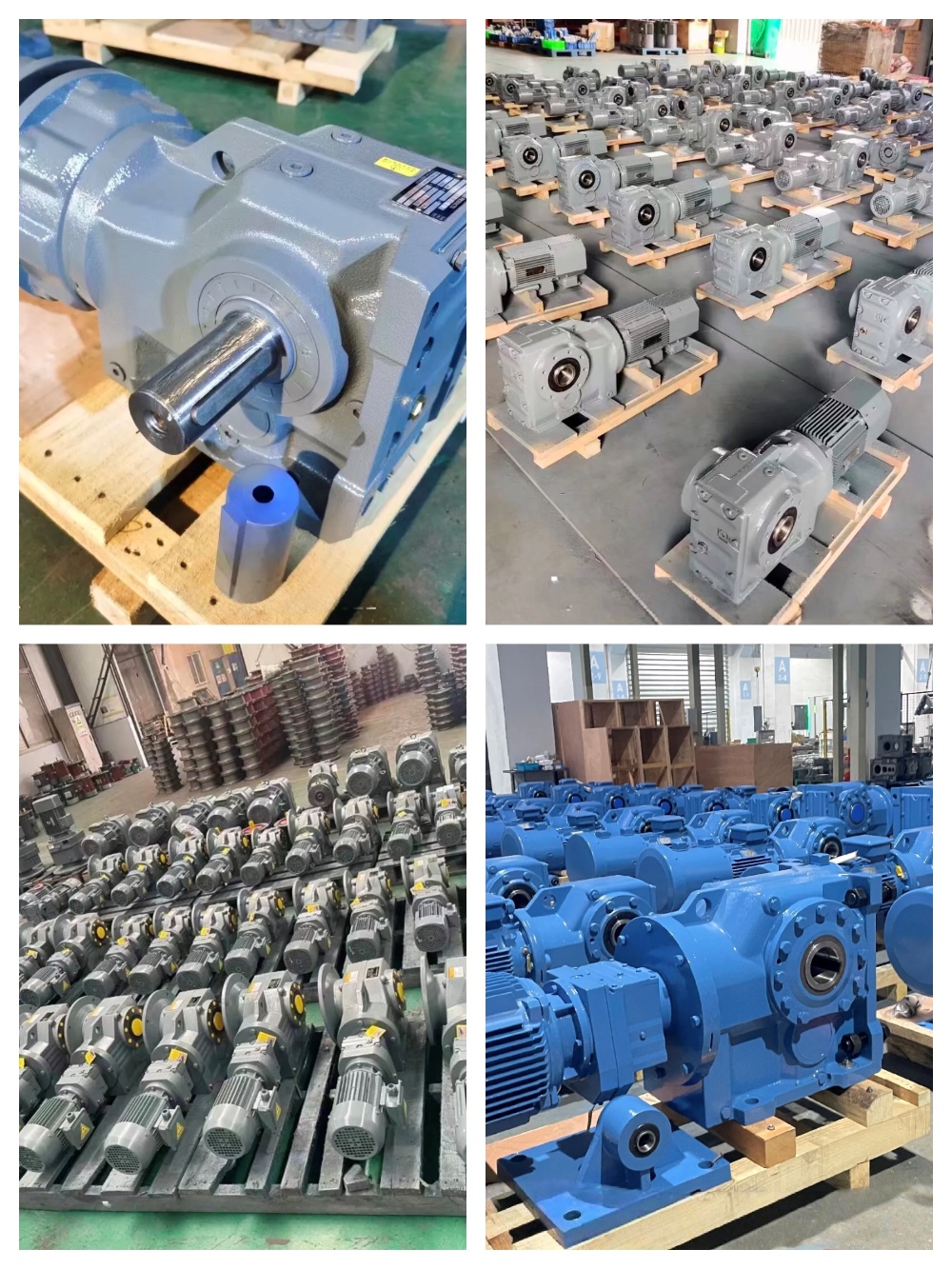

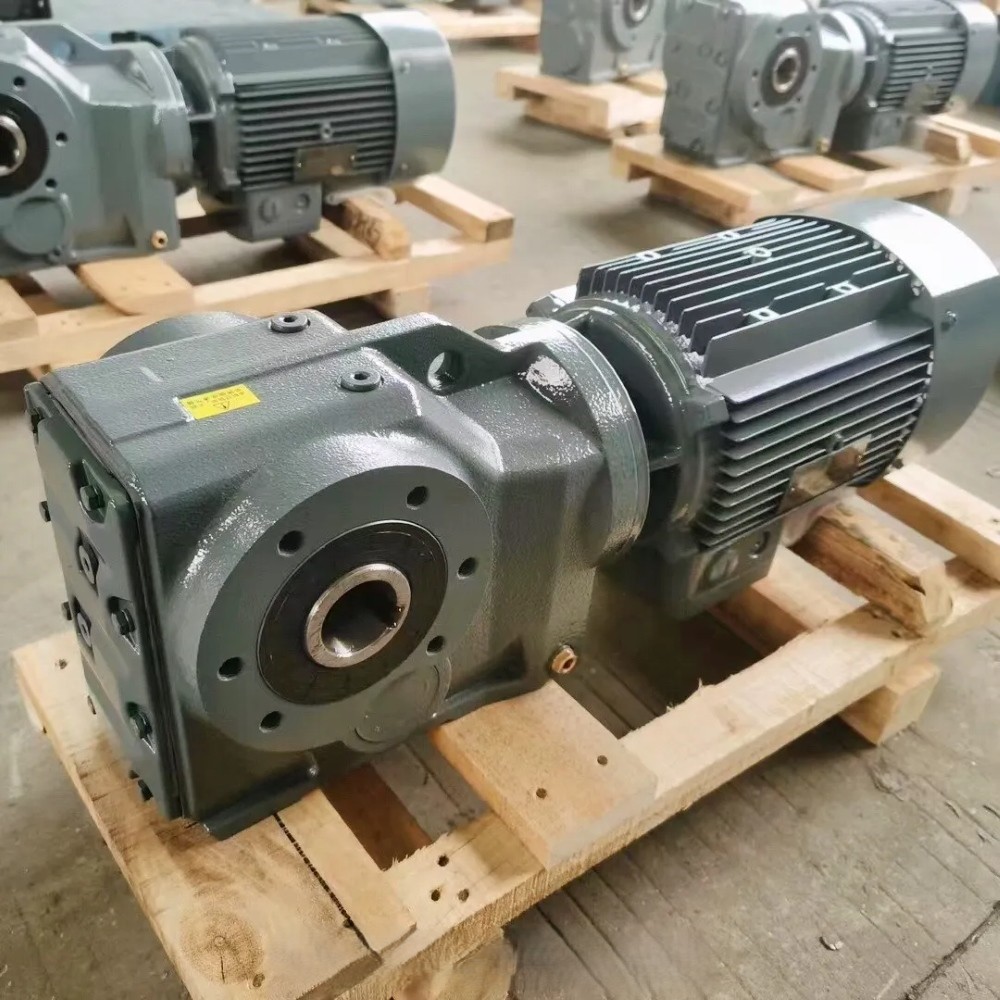

K series helical bevel geared motor is designed based on module, which bring many difference kinds of combinations, mounting types, and structure designs. The detail classification of ratio can meet various of working condition. High Transmission efficiency, low energy consumption and superior performance. The hard tooth surface gear use the high quality alloy steel, the process of carburizing and quenching, grinding, which give it following characters: Stable transmission, low noise and temperature, high loading and long working life.
Adopt optimized design, module combination.
Right angle output, wide application.
It adopts advanced grinding technology and shape modification technology, which has high bearing capacity, reliable operation and low noise.
Good sealing performance, suitable for a wide range of working conditions.
High transmission efficiency and energy saving.
Can be combined with various motors with wider ratio range
Cost-effective and easy to maintain.
Product Form
Transmission Stage: 3 stage.

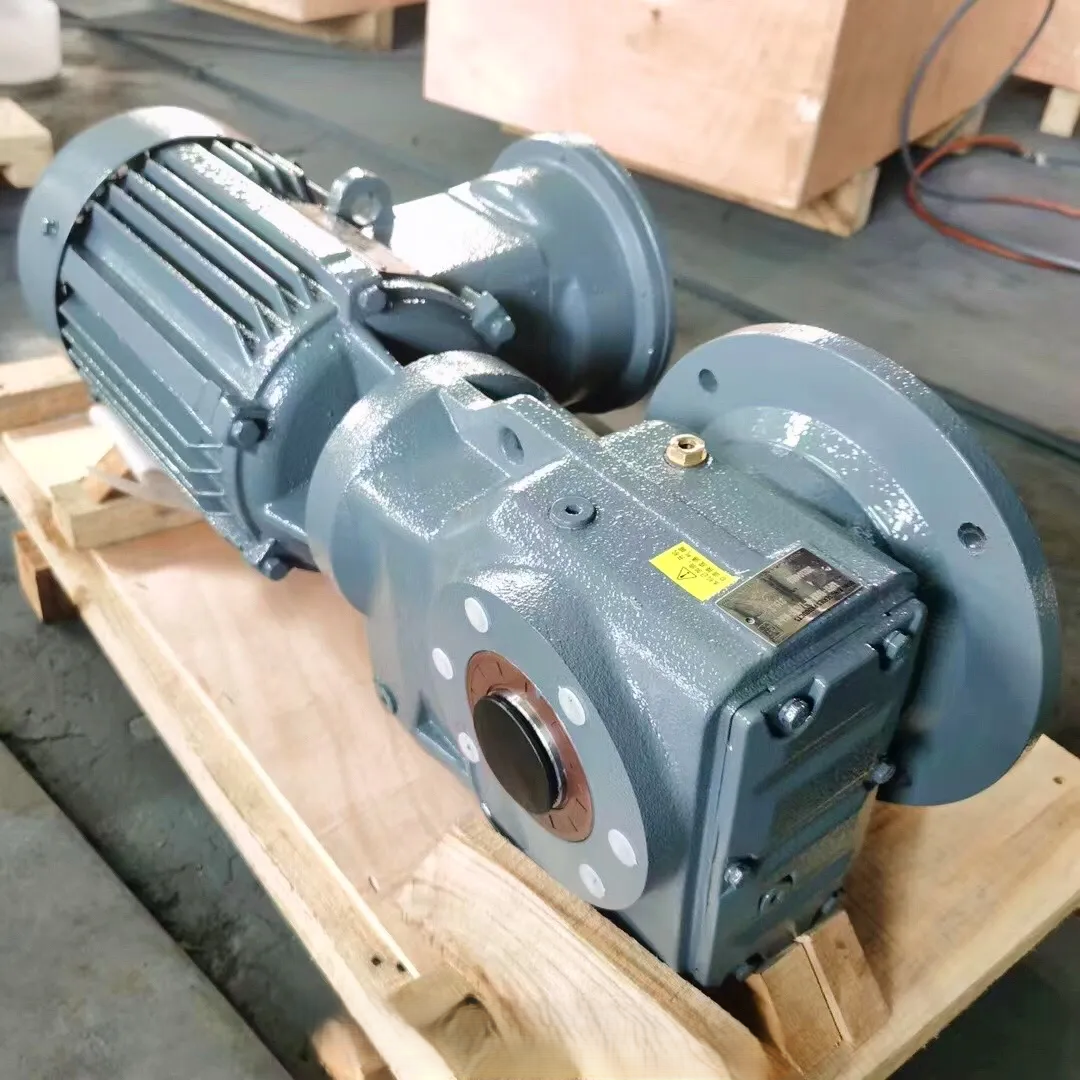

Assembly Form: Foot mounted, Flange mounted, B14 small flange mounted, torque arm mounted.
Right Angle Output: Solid shaft, Hollow shaft ( flat key, shrink disk, involute spline), Splined solid shaft
Technical Data
Size: KA37~KA187
Technical Data(N·m): 200~50000
Gear Ratio: 5.36~179.86 （imax:13461）
Input Power(kW)：0.12~200
