General specifications
Power Supply:
Voltage from 115 V to 690 V at 50 Hz and 60 Hz are available.
Degree of Protection:
IP 65
Thermal class: F (155 °C)
Tropical Insulation:
Standard
Electrical Connection:
Use high flexible cable for heavy mechanical stress for example: H07RN-F or A07RN-F according to DIN VDE 0282.
Permissible Ambient Temperature:
-20 to +40 °C.
Special versions with cold steel to -65 °C are available upon request.
Operating Mode:
Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.

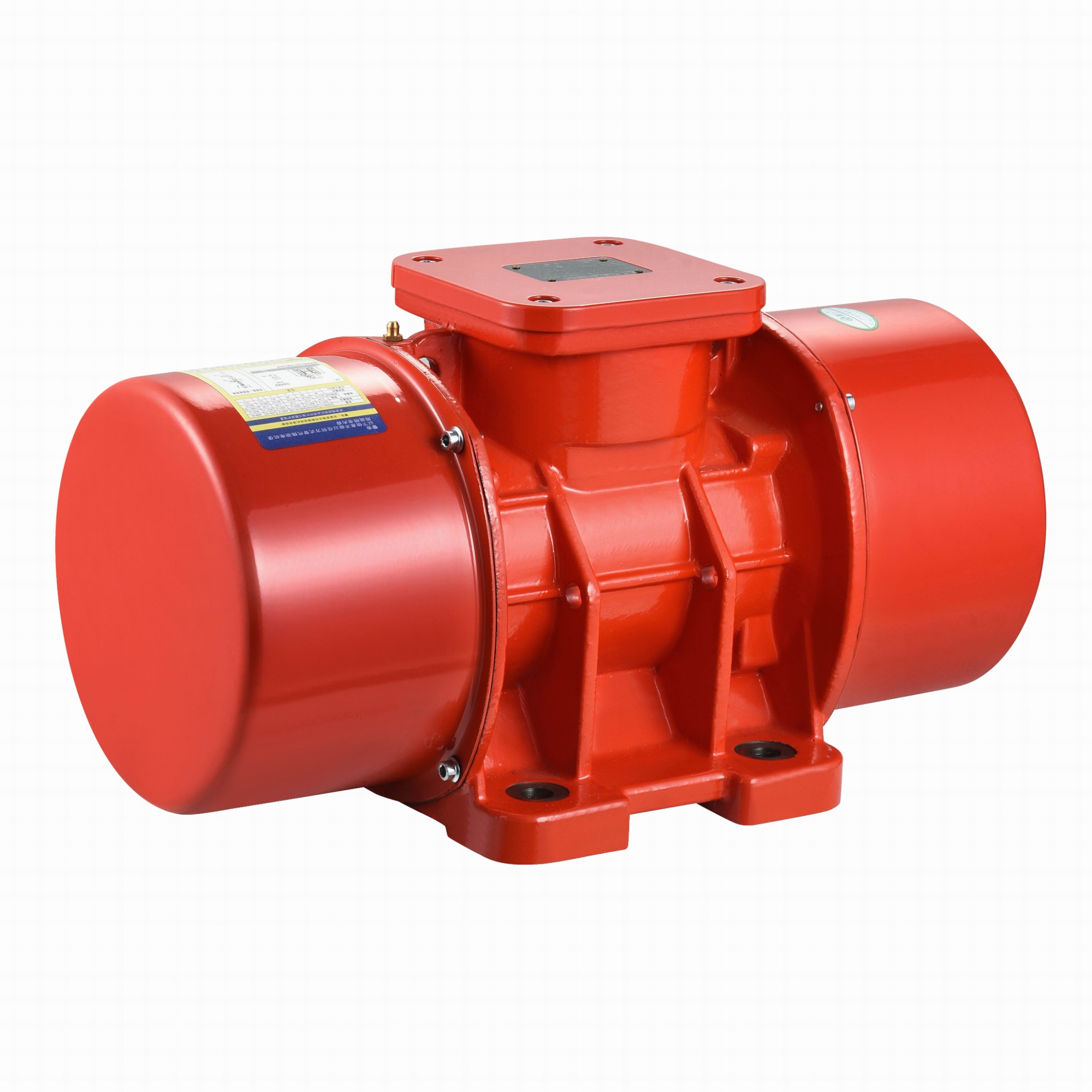

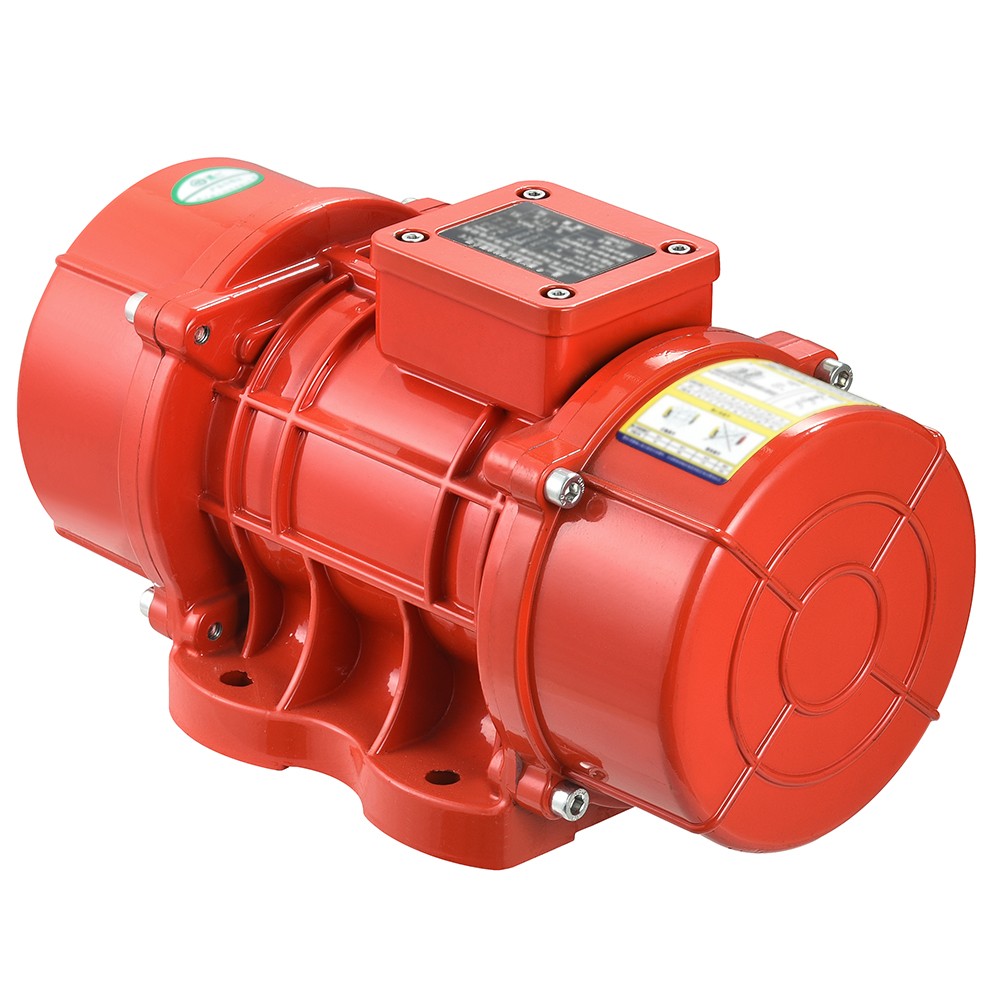

Hoods:
Hoods made from pressed sheet metal or stainless steel comprise the special shape. A silicone seal provides optimum protection against the ingress of dust and water.
Brief introduction:
1. Reasonable design, excellent material, high efficiency, low temperature rise, long service life.
2. The weight density and design this vibratory motor has a high starting torque and low electrical power consumption.
3. Low operating noise levels (dB) due to stable rotation.
4. Can be work in explosive hazardous environment suitable for this series.

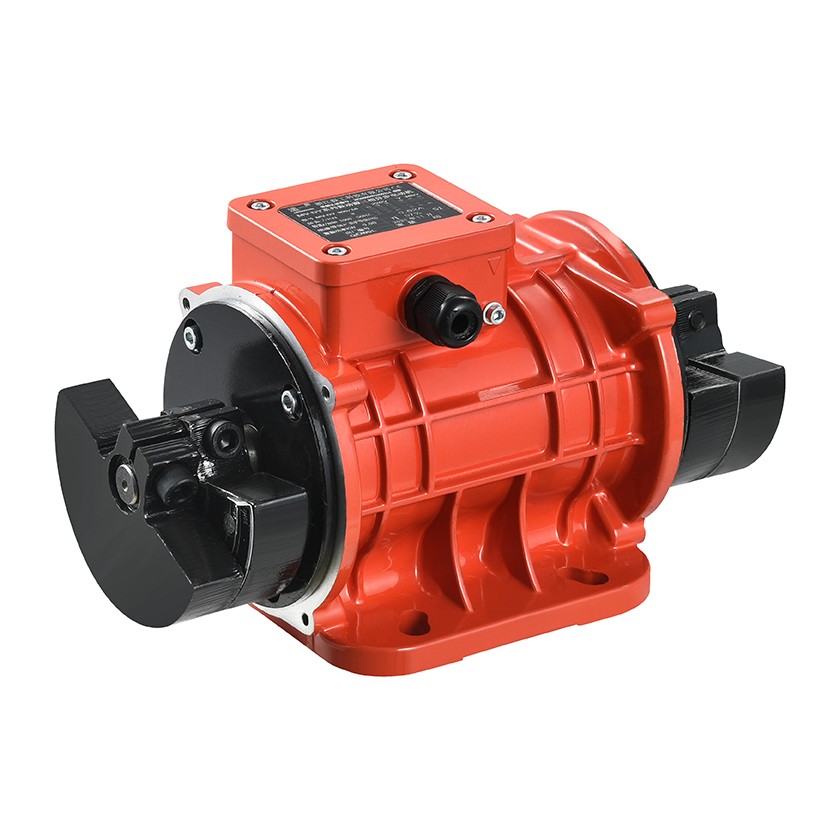

5. By adjusting the angle of the flyweights,various vibratory force can be achieved.
6. Multiple motors can be combined into various vibration forms to meet various operating requirements.
Application:
Vibratory feeders and conveyors in manufacturing and processing industries.
Vibrating screens and sieves for material sorting and separation.
Compaction and consolidation equipment in construction and civil engineering projects.
Vibration-based equipment used in mining, quarrying, and aggregate processing.
Industrial machinery requiring precise and controlled vibrations for processes such as sorting, compacting, and screening.
Hazardous environments where explosive atmospheres are present, such as in chemical plants, refineries, and oil and gas facilities.
Any application requiring adjustable vibratory forces and the ability to customize vibration forms to meet specific operational requirements.
