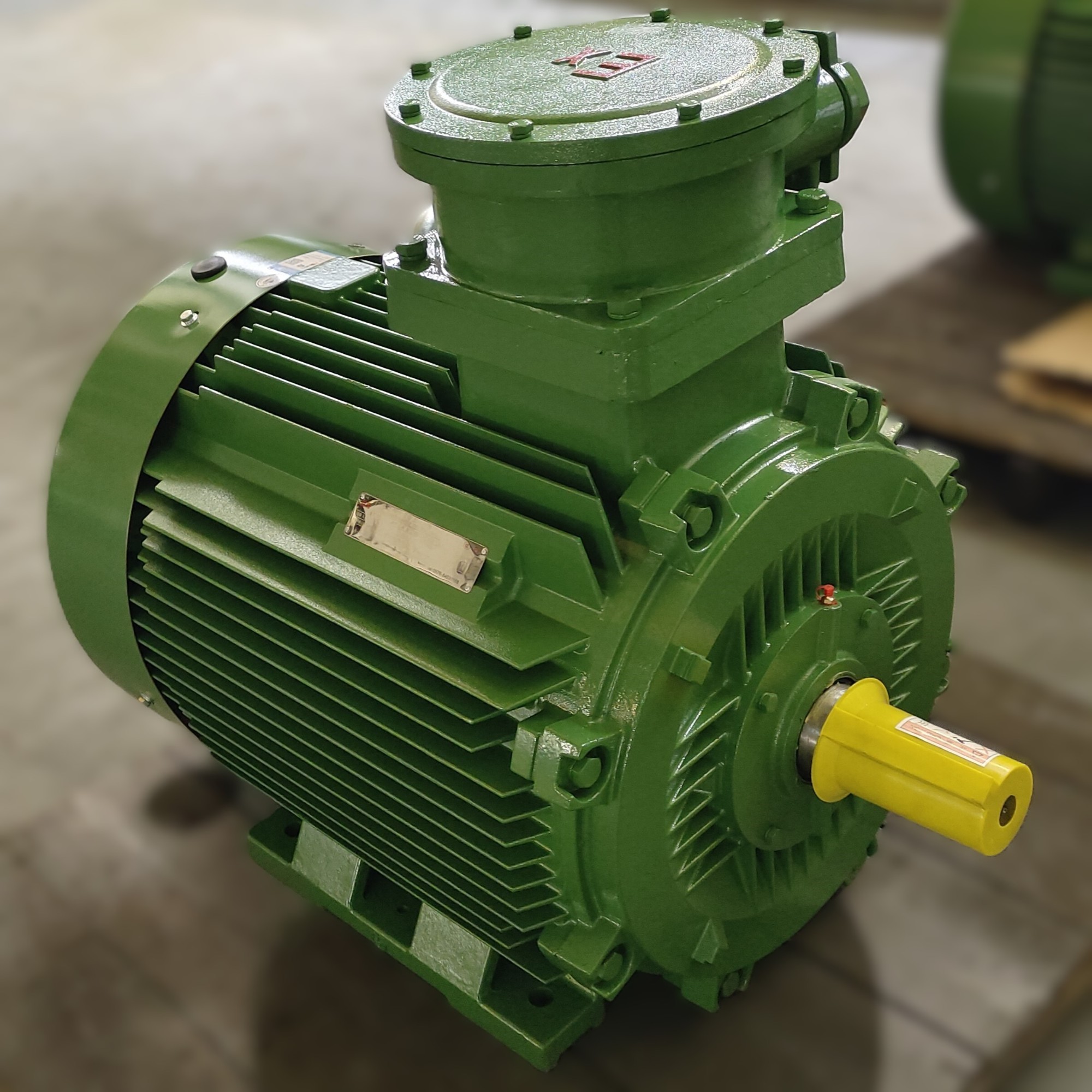

YBX3 series explosion-proof three phase asynchronous electric motor

Brief introduction

The explosion-proof performance meets the requirements of GB/T3836.1-2021 Explosive environment Part 1: General requirements of equipment and

GB/T3836.2-2021 Explosive environment Part 2: Equipment protected by flameproof enclosure "d". As a general driving force, YBX3 series motor is suitable for

equipment in places where flammable gas containing certain components or explosive mixtures of steam and air exist . It' s mainly used in petroleum and chemical

industry, also widely applied in textile, metallurgy, city gas, transportation, grain and oil processing, paper, medicine and other industries. The efficiency index conforms

to the value of grade 3 specified in GB18613-2020 Minimum Allowable Values of Energy Efficiency and Values of Efficiency Grades for motors and also IE3 of

IEC60034-30-1.

The remarkable characteristics of this series motor are high efficiency and energy conservation, as well as large temperature rise margin, long lifetime, small

vibration, low noise and high reliability. And auxiliary equipment such as winding temperature sensor, bearing temperature sensor, temperature transmitter and heater

can be installed according to user needs.
